RXF97減速機加電機重量：

RXF97減速機加5.5KW電機重量131KG,RXF97減速機加7.5KW電機重量144KG,RXF97減速機加11KW電機重量186KG,RXF97減速機加15KW電機重量236KG,RXF97減速機加18.5KW電機重量2432KG,RXF97減速機加22KW電機重量256KG,RXF97減速機加30KW電機重量324KG,RXF97減速機加37KW電機重量371KG。齒輪減速機

RXF97減速機加油量：可加齒輪潤滑油

RXF97減速機M4安裝加6.3L，RXF97減速機M3安裝加7.1L，RXF97減速機M2安裝加3.7L，RXF97減速機M1安裝加2.1L，RXF97減速機M5安裝加4.8L，RXF97減速機M6安裝加4.8L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。同軸減速機

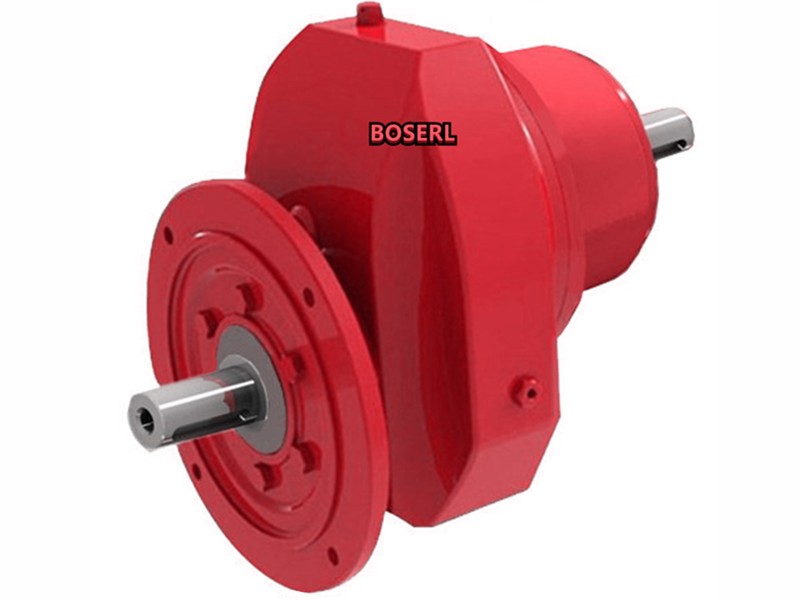

RXF97減速機實物圖：圖一為RXF97減速機不同心立式法蘭安裝，圖二為R97底腳安裝斜齒輪減速機，圖三為RF97法蘭立式安裝斜齒輪減速機，圖四為RX97減速機不同心臥式底腳安裝。

RXF97減速機型號表示方法：

RXF97減速機型號結構RXF97-B18.5KW-4P-減速比-安裝方式-接線盒位置。硬齒面減速機

RXF97減速機性能參數表結構說明：i代表減速比，Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入加置。齒輪減速機

RXF97減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

RXF97減速機參數：

RXF97減速機負載扭矩225Nm,260Nm,300Nm,395Nm,420Nm,455Nm,505Nm,570Nm,595Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大使用）

RXF97減速機電機可加交流,伺服,剎車,變頻,防爆,直流,三相,單相電機RXF97加5.5KW,RXF97加7.5KW,RXF97加11KW,RXF97加15KW,RXF97加18.5KW,RXF97加22KW,RXF97加30KW,RXF97加37KW。

RXF97減速機輸出轉速170rpm,196rpm,213rpm,242rpm,285rpm,310rpm,347rpm,385rpm,424rpm,479rpm,530rpm,625rpm,714rpm,854rpm,986rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RXF97減速機減速比1:2.24,1:2.64,1:2.92,1:3.3,1:3.64,1:4.04,1:4.52,1:4.91,1:5.79,1:6.56,1:7.16,1:8.23。

RXF97減速機外觀尺寸：輸出軸直徑Φ50+鍵3.5（可定做），高393*寬328*長316（帶輸出軸）

RXF97減速機型號：

RXF97AQA80,RXF97AQA100,RXF97AQA115,RXF97AQA140,RXF97AQA160,RXF97AQA190,RXF97AQH80,RXF97AQH100,RXF97AQH115,RXF97AQH140,RXF97AQH160,RXF97AQH190,JRTRXF97-Y0.55KW,JRTRXF97-Y0.75KW,JRTRXF97-Y1.1KW,JRTRXF97-Y1.5KW,JRTRXF97-Y100M4,JRTRXF97-Y112M4,JRTRXF97-Y11KW,JRTRXF97-Y132M4,JRTRXF97-Y15KW,JRTRXF97-Y160M4,JRTRXF97-Y18.5KW,JRTRXF97-Y180M4,JRTRXF97-Y2.2KW,JRTRXF97-Y200M4,JRTRXF97-Y22KW,JRTRXF97-Y30KW,JRTRXF97-Y3KW,JRTRXF97-Y4KW,JRTRXF97-Y5.5KW,JRTRXF97-Y7.5KW,JRTRXF97-Y80M4,JRTRXF97-Y90M4,JRTRXF97-YEJ100M4,JRTRXF97-YEJ112M4,JRTRXF97-YEJ132M4,JRTRXF97-YEJ160M4,JRTRXF97-YEJ180M4,JRTRXF97-YEJ200M4,JRTRXF97-YEJ80M4,JRTRXF97-YEJ90M4,JRTRXF97-YS100M4,JRTRXF97-YS112M4,JRTRXF97-YS132M4,JRTRXF97-YS160M4,JRTRXF97-YS180M4,JRTRXF97-YS200M4,JRTRXF97-YS80M4,JRTRXF97-YS90M4,JRTRXF97-YVP100M4,JRTRXF97-YVP112M4,JRTRXF97-YVP132M4,JRTRXF97-YVP160M4,JRTRXF97-YVP180M4,JRTRXF97-YVP200M4,JRTRXF97-YVP80M4,JRTRXF97-YVP90M4,JRTRXF97-YVPEJ100M4,JRTRXF97-YVPEJ112M4,JRTRXF97-YVPEJ132M4,JRTRXF97-YVPEJ160M4,JRTRXF97-YVPEJ180M4,JRTRXF97-YVPEJ200M4,JRTRXF97-YVPEJ80M4,JRTRXF97-YVPEJ90M4,EWRXF97-Y0.55KW,EWRXF97-Y0.75KW,EWRXF97-Y1.1KW,EWRXF97-Y1.5KW,EWRXF97-Y100M4,EWRXF97-Y112M4,EWRXF97-Y11KW,EWRXF97-Y132M4,EWRXF97-Y15KW,EWRXF97-Y160M4,EWRXF97-Y18.5KW,EWRXF97-Y180M4,EWRXF97-Y2.2KW,EWRXF97-Y200M4,EWRXF97-Y22KW,EWRXF97-Y30KW,EWRXF97-Y3KW,EWRXF97-Y4KW,EWRXF97-Y5.5KW,EWRXF97-Y7.5KW,EWRXF97-Y80M4,EWRXF97-Y90M4,EWRXF97-YEJ100M4,EWRXF97-YEJ112M4,EWRXF97-YEJ132M4,EWRXF97-YEJ160M4,EWRXF97-YEJ180M4,EWRXF97-YEJ200M4,EWRXF97-YEJ80M4,EWRXF97-YEJ90M4,EWRXF97-YS100M4,EWRXF97-YS112M4,EWRXF97-YS132M4,EWRXF97-YS160M4,EWRXF97-YS180M4,EWRXF97-YS200M4,EWRXF97-YS80M4,EWRXF97-YS90M4,EWRXF97-YVP100M4,EWRXF97-YVP112M4,EWRXF97-YVP132M4,EWRXF97-YVP160M4,EWRXF97-YVP180M4,EWRXF97-YVP200M4,EWRXF97-YVP80M4,EWRXF97-YVP90M4,EWRXF97-YVPEJ100M4,EWRXF97-YVPEJ112M4,EWRXF97-YVPEJ132M4,EWRXF97-YVPEJ160M4,EWRXF97-YVPEJ180M4,EWRXF97-YVPEJ200M4,EWRXF97-YVPEJ80M4,EWRXF97-YVPEJ90M4,SLRXF97-Y0.55KW,SLRXF97-Y0.75KW,SLRXF97-Y1.1KW,SLRXF97-Y1.5KW,SLRXF97-Y100M4,SLRXF97-Y112M4,SLRXF97-Y11KW,SLRXF97-Y132M4,SLRXF97-Y15KW,SLRXF97-Y160M4,SLRXF97-Y18.5KW,SLRXF97-Y180M4,SLRXF97-Y2.2KW,SLRXF97-Y200M4,SLRXF97-Y22KW,SLRXF97-Y30KW,SLRXF97-Y3KW,SLRXF97-Y4KW,SLRXF97-Y5.5KW,SLRXF97-Y7.5KW,SLRXF97-Y80M4,SLRXF97-Y90M4,SLRXF97-YEJ100M4,SLRXF97-YEJ112M4,SLRXF97-YEJ132M4,SLRXF97-YEJ160M4,SLRXF97-YEJ180M4,SLRXF97-YEJ200M4,SLRXF97-YEJ80M4,SLRXF97-YEJ90M4,SLRXF97-YS100M4,SLRXF97-YS112M4,SLRXF97-YS132M4,SLRXF97-YS160M4,SLRXF97-YS180M4,SLRXF97-YS200M4,SLRXF97-YS80M4,SLRXF97-YS90M4,SLRXF97-YVP100M4,SLRXF97-YVP112M4,SLRXF97-YVP132M4,SLRXF97-YVP160M4,SLRXF97-YVP180M4,SLRXF97-YVP200M4,SLRXF97-YVP80M4,SLRXF97-YVP90M4,SLRXF97-YVPEJ100M4,SLRXF97-YVPEJ112M4,SLRXF97-YVPEJ132M4,SLRXF97-YVPEJ160M4,SLRXF97-YVPEJ180M4,SLRXF97-YVPEJ200M4,SLRXF97-YVPEJ80M4,SLRXF97-YVPEJ90M4,DSZRXF97-Y0.55KW,DSZRXF97-Y0.75KW,DSZRXF97-Y1.1KW,DSZRXF97-Y1.5KW,DSZRXF97-Y100M4,DSZRXF97-Y112M4,DSZRXF97-Y11KW,DSZRXF97-Y132M4,DSZRXF97-Y15KW,DSZRXF97-Y160M4,DSZRXF97-Y18.5KW,DSZRXF97-Y180M4,DSZRXF97-Y2.2KW,DSZRXF97-Y200M4,DSZRXF97-Y22KW,DSZRXF97-Y30KW,DSZRXF97-Y3KW,DSZRXF97-Y4KW,DSZRXF97-Y5.5KW,DSZRXF97-Y7.5KW,DSZRXF97-Y80M4,DSZRXF97-Y90M4,DSZRXF97-YEJ100M4,DSZRXF97-YEJ112M4,DSZRXF97-YEJ132M4,DSZRXF97-YEJ160M4,DSZRXF97-YEJ180M4,DSZRXF97-YEJ200M4,DSZRXF97-YEJ80M4,DSZRXF97-YEJ90M4,DSZRXF97-YS100M4,DSZRXF97-YS112M4,DSZRXF97-YS132M4,DSZRXF97-YS160M4,DSZRXF97-YS180M4,DSZRXF97-YS200M4,DSZRXF97-YS80M4,DSZRXF97-YS90M4,DSZRXF97-YVP100M4,DSZRXF97-YVP112M4,DSZRXF97-YVP132M4,DSZRXF97-YVP160M4,DSZRXF97-YVP180M4,DSZRXF97-YVP200M4,DSZRXF97-YVP80M4,DSZRXF97-YVP90M4,DSZRXF97-YVPEJ100M4,DSZRXF97-YVPEJ112M4,DSZRXF97-YVPEJ132M4,DSZRXF97-YVPEJ160M4,DSZRXF97-YVPEJ180M4,DSZRXF97-YVPEJ200M4,DSZRXF97-YVPEJ80M4,DSZRXF97-YVPEJ90M4,BRXF97-Y0.55KW,BRXF97-Y0.75KW,BRXF97-Y1.1KW,BRXF97-Y1.5KW,BRXF97-Y100M4,BRXF97-Y112M4,BRXF97-Y11KW,BRXF97-Y132M4,BRXF97-Y15KW,BRXF97-Y160M4,BRXF97-Y18.5KW,BRXF97-Y180M4,BRXF97-Y2.2KW,BRXF97-Y200M4,BRXF97-Y22KW,BRXF97-Y30KW,BRXF97-Y3KW,BRXF97-Y4KW,BRXF97-Y5.5KW,BRXF97-Y7.5KW,BRXF97-Y80M4,BRXF97-Y90M4,BRXF97-YEJ100M4,BRXF97-YEJ112M4,BRXF97-YEJ132M4,BRXF97-YEJ160M4,BRXF97-YEJ180M4,BRXF97-YEJ200M4,BRXF97-YEJ80M4,BRXF97-YEJ90M4,BRXF97-YS100M4,BRXF97-YS112M4,BRXF97-YS132M4,BRXF97-YS160M4,BRXF97-YS180M4,BRXF97-YS200M4,BRXF97-YS80M4,BRXF97-YS90M4,BRXF97-YVP100M4,BRXF97-YVP112M4,BRXF97-YVP132M4,BRXF97-YVP160M4,BRXF97-YVP180M4,BRXF97-YVP200M4,BRXF97-YVP80M4,BRXF97-YVP90M4,BRXF97-YVPEJ100M4,BRXF97-YVPEJ112M4,BRXF97-YVPEJ132M4,BRXF97-YVPEJ160M4,BRXF97-YVPEJ180M4,BRXF97-YVPEJ200M4,BRXF97-YVPEJ80M4,BRXF97-YVPEJ90M4,GRXF97-Y0.55KW,GRXF97-Y0.75KW,GRXF97-Y1.1KW,GRXF97-Y1.5KW,GRXF97-Y100M4,GRXF97-Y112M4,GRXF97-Y11KW,GRXF97-Y132M4,GRXF97-Y15KW,GRXF97-Y160M4,GRXF97-Y18.5KW,GRXF97-Y180M4,GRXF97-Y2.2KW,GRXF97-Y200M4,GRXF97-Y22KW,GRXF97-Y30KW,GRXF97-Y3KW,GRXF97-Y4KW,GRXF97-Y5.5KW,GRXF97-Y7.5KW,GRXF97-Y80M4,GRXF97-Y90M4,GRXF97-YEJ100M4,GRXF97-YEJ112M4,GRXF97-YEJ132M4,GRXF97-YEJ160M4,GRXF97-YEJ180M4,GRXF97-YEJ200M4,GRXF97-YEJ80M4,GRXF97-YEJ90M4,GRXF97-YS100M4,GRXF97-YS112M4,GRXF97-YS132M4,GRXF97-YS160M4,GRXF97-YS180M4,GRXF97-YS200M4,GRXF97-YS80M4,GRXF97-YS90M4,GRXF97-YVP100M4,GRXF97-YVP112M4,GRXF97-YVP132M4,GRXF97-YVP160M4,GRXF97-YVP180M4,GRXF97-YVP200M4,GRXF97-YVP80M4,GRXF97-YVP90M4,GRXF97-YVPEJ100M4,GRXF97-YVPEJ112M4,GRXF97-YVPEJ132M4,GRXF97-YVPEJ160M4,GRXF97-YVPEJ180M4,GRXF97-YVPEJ200M4,GRXF97-YVPEJ80M4,GRXF97-YVPEJ90M4,RCXF97-Y0.55KW,RCXF97-Y0.75KW,RCXF97-Y1.1KW,RCXF97-Y1.5KW,RCXF97-Y100M4,RCXF97-Y112M4,RCXF97-Y11KW,RCXF97-Y132M4,RCXF97-Y15KW,RCXF97-Y160M4,RCXF97-Y18.5KW,RCXF97-Y180M4,RCXF97-Y2.2KW,RCXF97-Y200M4,RCXF97-Y22KW,RCXF97-Y30KW,RCXF97-Y3KW,RCXF97-Y4KW,RCXF97-Y5.5KW,RCXF97-Y7.5KW,RCXF97-Y80M4,RCXF97-Y90M4,RCXF97-YEJ100M4,RCXF97-YEJ112M4,RCXF97-YEJ132M4,RCXF97-YEJ160M4,RCXF97-YEJ180M4,RCXF97-YEJ200M4,RCXF97-YEJ80M4,RCXF97-YEJ90M4,RCXF97-YS100M4,RCXF97-YS112M4,RCXF97-YS132M4,RCXF97-YS160M4,RCXF97-YS180M4,RCXF97-YS200M4,RCXF97-YS80M4,RCXF97-YS90M4,RCXF97-YVP100M4,RCXF97-YVP112M4,RCXF97-YVP132M4,RCXF97-YVP160M4,RCXF97-YVP180M4,RCXF97-YVP200M4,RCXF97-YVP80M4,RCXF97-YVP90M4,RCXF97-YVPEJ100M4,RCXF97-YVPEJ112M4,RCXF97-YVPEJ132M4,RCXF97-YVPEJ160M4,RCXF97-YVPEJ180M4,RCXF97-YVPEJ200M4,RCXF97-YVPEJ80M4,RCXF97-YVPEJ90M4,MTDXF97-Y0.55KW,MTDXF97-Y0.75KW,MTDXF97-Y1.1KW,MTDXF97-Y1.5KW,MTDXF97-Y100M4,MTDXF97-Y112M4,MTDXF97-Y11KW,MTDXF97-Y132M4,MTDXF97-Y15KW,MTDXF97-Y160M4,MTDXF97-Y18.5KW,MTDXF97-Y180M4,MTDXF97-Y2.2KW,MTDXF97-Y200M4,MTDXF97-Y22KW,MTDXF97-Y30KW,MTDXF97-Y3KW,MTDXF97-Y4KW,MTDXF97-Y5.5KW,MTDXF97-Y7.5KW,MTDXF97-Y80M4,MTDXF97-Y90M4,MTDXF97-YEJ100M4,MTDXF97-YEJ112M4,MTDXF97-YEJ132M4,MTDXF97-YEJ160M4,MTDXF97-YEJ180M4,MTDXF97-YEJ200M4,MTDXF97-YEJ80M4,MTDXF97-YEJ90M4,MTDXF97-YS100M4,MTDXF97-YS112M4,MTDXF97-YS132M4,MTDXF97-YS160M4,MTDXF97-YS180M4,MTDXF97-YS200M4,MTDXF97-YS80M4,MTDXF97-YS90M4,MTDXF97-YVP100M4,MTDXF97-YVP112M4,MTDXF97-YVP132M4,MTDXF97-YVP160M4,MTDXF97-YVP180M4,MTDXF97-YVP200M4,MTDXF97-YVP80M4,MTDXF97-YVP90M4,MTDXF97-YVPEJ100M4,MTDXF97-YVPEJ112M4,MTDXF97-YVPEJ132M4,MTDXF97-YVPEJ160M4,MTDXF97-YVPEJ180M4,MTDXF97-YVPEJ200M4,MTDXF97-YVPEJ80M4,MTDXF97-YVPEJ90M4,WXRXF97-WSS0.55KW,WXRXF97-WSS0.75KW,WXRXF97-WSS1.1KW,WXRXF97-WSS1.5KW,WXRXF97-WSS100M4,WXRXF97-WSS112M4,WXRXF97-WSS11KW,WXRXF97-WSS132M4,WXRXF97-WSS15KW,WXRXF97-WSS160M4,WXRXF97-WSS18.5KW,WXRXF97-WSS180M4,WXRXF97-WSS2.2KW,WXRXF97-WSS200M4,WXRXF97-WSS22KW,WXRXF97-WSS30KW,WXRXF97-WSS3KW,WXRXF97-WSS4KW,WXRXF97-WSS5.5KW,WXRXF97-WSS7.5KW,WXRXF97-WSS80M4,WXRXF97-WSS90M4,WXRXF97-WSSB100M4,WXRXF97-WSSB112M4,WXRXF97-WSSB132M4,WXRXF97-WSSB160M4,WXRXF97-WSSB180M4,WXRXF97-WSSB200M4,WXRXF97-WSSB80M4,WXRXF97-WSSB90M4,WXRXF97-WSSVP100M4,WXRXF97-WSSVP112M4,WXRXF97-WSSVP132M4,WXRXF97-WSSVP160M4,WXRXF97-WSSVP180M4,WXRXF97-WSSVP200M4,WXRXF97-WSSVP80M4,WXRXF97-WSSVP90M4,WXRXF97-WSSVPB100M4,WXRXF97-WSSVPB112M4,WXRXF97-WSSVPB132M4,WXRXF97-WSSVPB160M4,WXRXF97-WSSVPB180M4,WXRXF97-WSSVPB200M4,WXRXF97-WSSVPB80M4,WXRXF97-WSSVPB90M4。

RXF97減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.shranhang.cn/product/list-rxfxiliejiansuji-cn.html

推薦類似型號：R97減速機
